PROTECT YOUR INVESTMENT

We don’t compromise on quality or design, nor should you – protect your investment in style.


Leading the world in advanced anchoring technologies, the Ultra Anchor is a dependable, new generation anchor. With its unique features and superior design, the Ultra buries itself deep into the seafloor and will never release even under the most unfavourable weather and underwater conditions - completely hand made from 316 stainless steel and hand polished, every Ultra Anchor is designed for excellence.


The Ultra Anchor demonstrates why a correct weight distribution and design is so important when setting and recovering your anchor. In fact, invert any Ultra Anchor and it will instantly recover itself to the attack position.


Such performance has been achieved with the innovative patented features this anchor displays; including a curved lead filled tip for instant penetration, a hollow shank for optimal weight distribution, concaved base surfaces for maximum holding power and large side wing plates to avoid release during changing wind or tide conditions. Furthermore, each anchor is easily recoverable with the flat pivot surface on the underside base.


The Ultra Anchor is suitable for all vessel types and locates securely onto the bow roller. Standard anchor sizes range from 8kg to 200kg with larger anchors available upon request.


UNIQUE FEATURES OF ULTRA ANCHORS

Leading the world in advanced anchoring technologies, the Ultra Anchor is a dependable, new generation anchor. With its unique features and superior design, the Ultra buries itself deep into the seafloor and will never release even under the most unfavourable weather and underwater conditions.

REINFORCED EYE

Even under the most extreme load the shanks’
reinforced eye will not bend, break or fail.

ANCHOR WEIGHT DETAIL

The anchor weight is stamped into the
shank & identifies the anchor size
in both kgs and lbs.

HOLLOW SHANK

Enables weight to be concentrated
on anchor tip.

TUBULAR CONSTRUCTION

Anchor cannot lie on its spine & recovers
instantly to the attack position. Anchor will also
load correctly into the bow roller.

NON CHAIN FOUL-BAR

Often chain can foul around the shank of the
anchor, resulting in the anchor not able to set. The
clever design feature of the non chain-foul bar
ensures chain simply cannot wrap around the
shank & provides the ability to attach a trip line.

FLAT UNDERSIDE

Once you begin to recover the anchor from the
seafloor, it pivots itself on the flat section & begins
to release (boat should be directly over anchor).



SIDE WING PLATES

The anchor does not release in a changing wind or
tide, it performs a complete 180 degree rotation
(while still buried) on its own length and holds firm.
The side wing plates assist the anchor to perform
this procedure & also act to stabilize the anchor
as it penetrates the sea floor.

LEAD FILLED TIP

Lead is inserted into the anchor tip, achieving
optimal weight distribution & ensuring anchor
penetrates unfavourable bottom conditions.

CURVED TIP

Importantly, the anchor tip is shaped downwards, ensuring an instant set in the sea floor.

MAX HOLDING POWER BASE

The concave base/fluke has the appearance of
a spade or shovel, & has extreme holding power
with a greater surface area than conventional
style anchors. The result is a more secure,
higher holding power anchor that will not release.

SERIAL NUMBER

Every Ultra Anchor is stamped with a unique
serial number, ensuring your anchor is
always identifiable.

GUARANTEE

The Ultra Anchor is supplied with a
LIFETIME WARRANTY against manufacturing
defects under normal conditions and use.

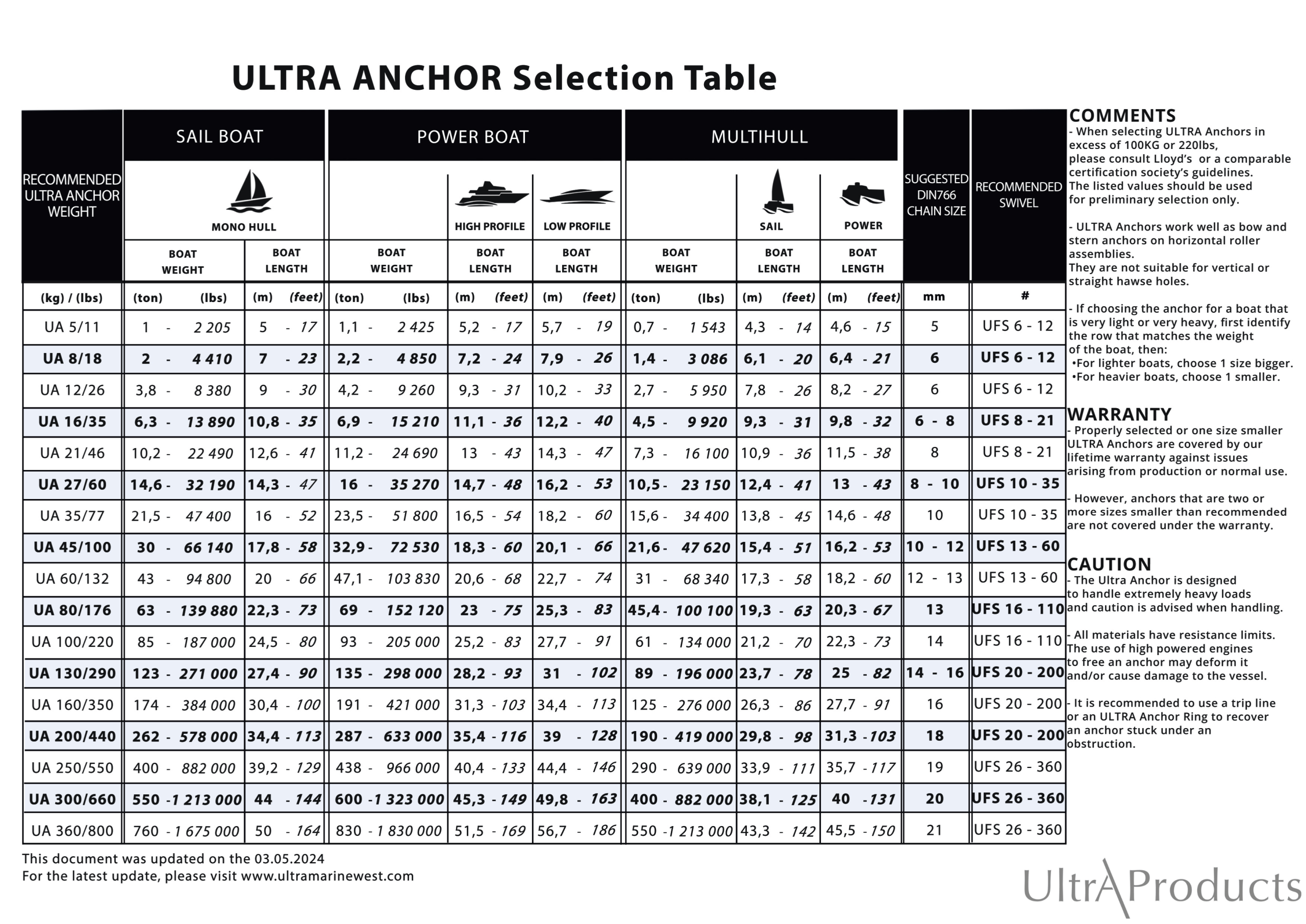

*Lifetime Warranty is valid provided the anchor was sized appropriately for the boat, based on the official Ultra Anchor Sizing Chart, & the anchor is used as per the Ultra Anchor User Guide.

VIDEOS OF ULTRA ANCHORS

Leading the world in advanced anchoring technologies, the Ultra Anchor is a dependable, new generation anchor. With its unique features and superior design, the Ultra buries itself deep into the seafloor and will never release even under the most unfavourable weather and underwater conditions.

Deploying and recovery of Ultra Marine Anchor plus anchor setting and turning on sea bottom.


3d animation showing the Ultra Anchor in action,
and how innovative the unique features are.

Demonstrating a 12kg Ultra Anchor with 3 ft of chain, setting in very dense weed. At only 12kg most anchors would not go close to setting on this bottom.

WHAT PEOPLE SAY ABOUT ULTRA ANCHORS

32
14
23
previous arrow
next arrow

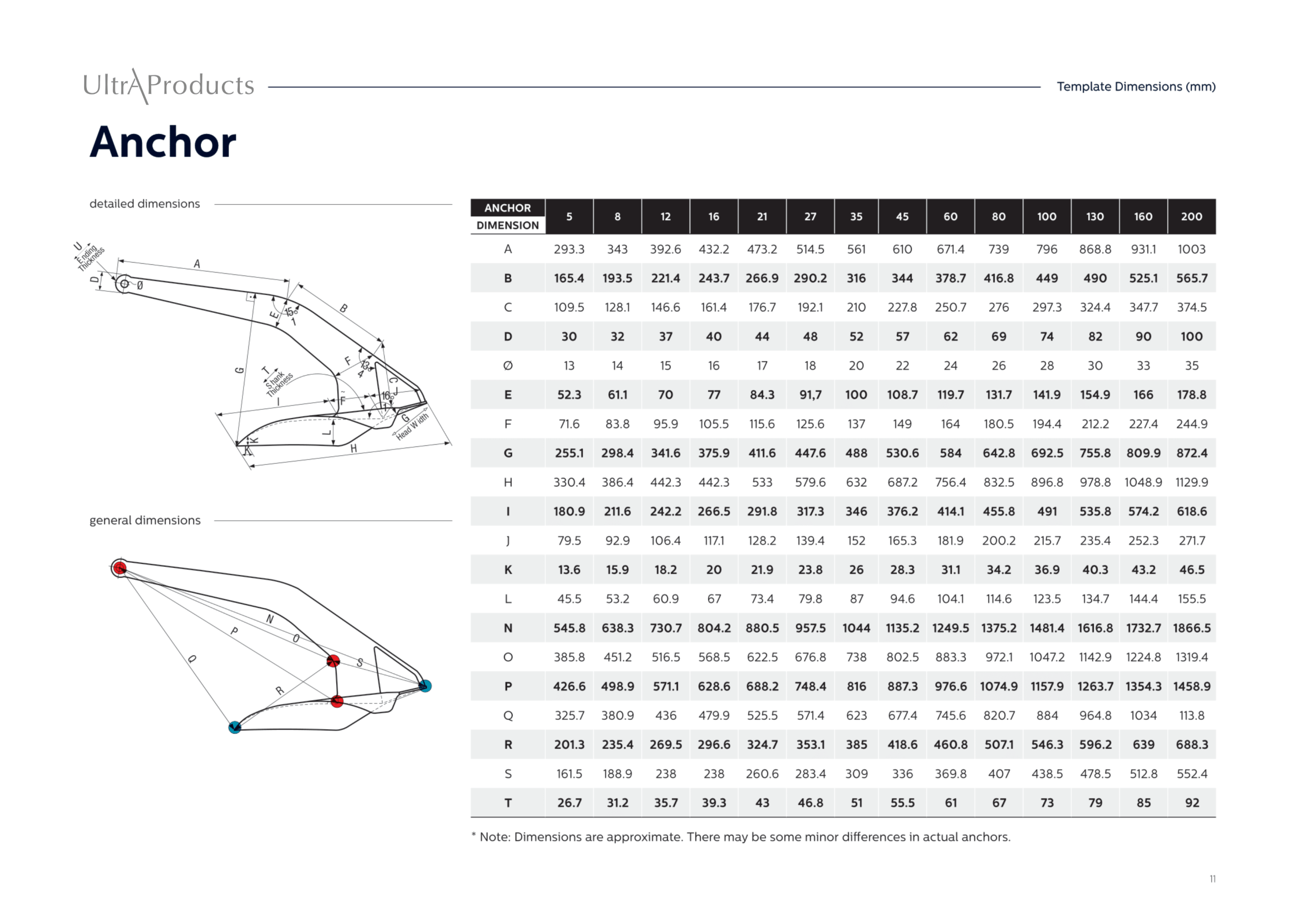

ULTRA ANCHOR DOCUMENTATION

Leading the world in advanced anchoring technologies, the Ultra Anchor is a dependable, new generation anchor. With its unique features and superior design, the Ultra buries itself deep into the seafloor and will never release even under the most unfavourable weather and underwater conditions.

BUY ULTRA ANCHORS ONLINE

Manufactured in Europe, the Ultra Anchor range is the pinnacle in anchoring technology and design.
Completely hand made from 316 stainless steel and hand polished, every Ultra Anchor is designed for excellence.



BUY YOUR ULTRA ANCHOR NOW
